Painting of airplane interior composite materials

achieve painting quality standards set by the Airbus standard (layer thickness, gloss, spectrum, structure of the piece)
deliver a complete paint preparation station
develop a system for 3K dosing of the paint mixture
easy exchange of workpieces
easy user interface for for operators
increase productivity

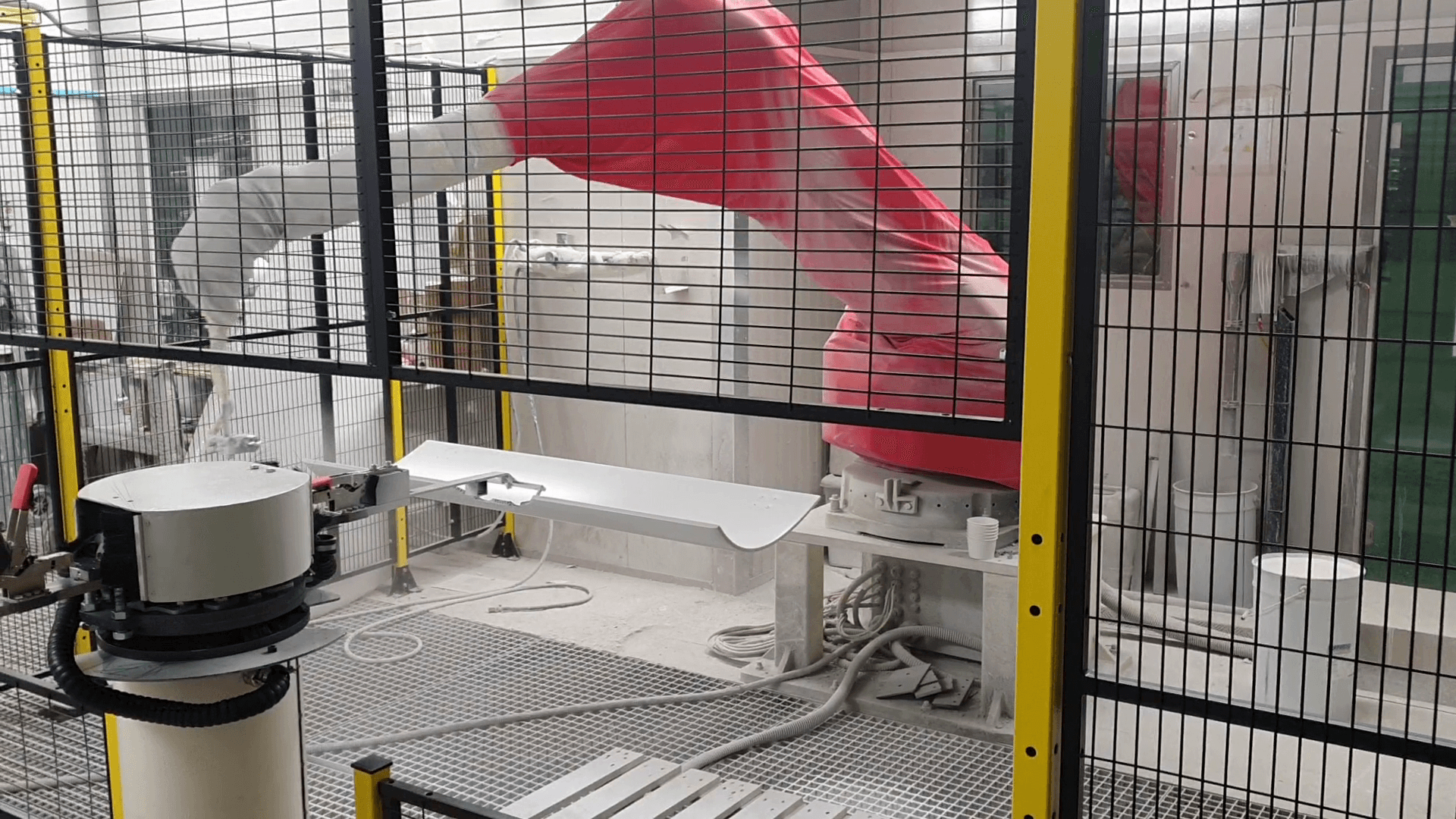

6-axis ABB industrial painting robot

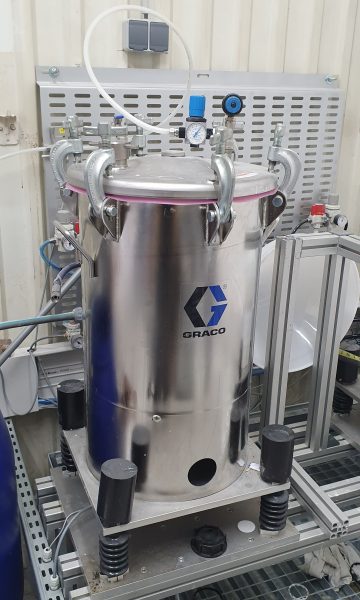

color preparation station, with recirculation and the possibility of choosing 4 different colors
fluid dosing control
pressure monitoring of all components
color agitation according to special requirements
supply of catalyst in an inert atmosphere to prevent hardening
self-developed 3K dosing system for achieving extremely high quality & repeatability of the workpiece painting surface
automatic cleaning of color lines
automatic cleaning of the tip of the applicator

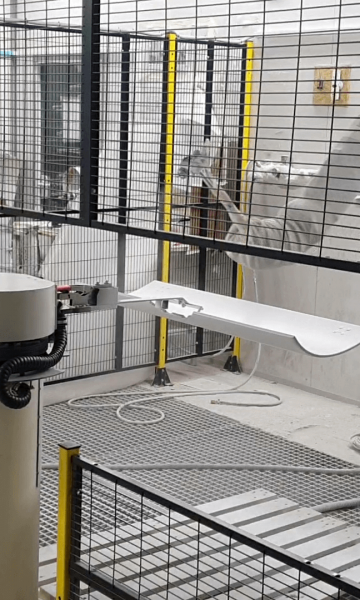

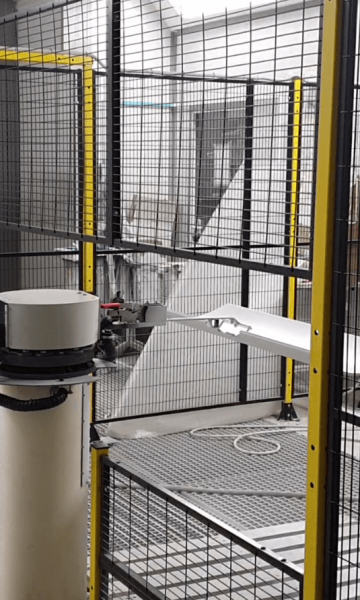

simple manual system for quick exchange of workpieces
offline programming of trajectories
dosing monitoring of all components in real time (ensuring repeatability)
SIEMENS PLC & HMI system for monitoring the robotic cell
easy system upgrade for more colors
