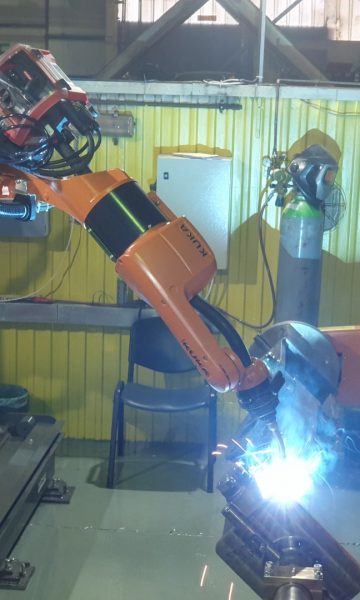

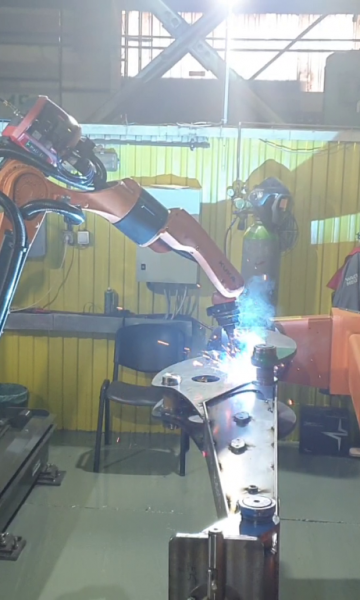

MIG / MAG welding

high degree of weld quality
conceptual solution of clamping devices
simple and quick replacement of parts
flexibility of mounting various types of clamping devices
programming of two types of products
specific requirements due to very complex products
customized solution of robotic station
different types of tool clamping devices must be mounted on a single connection on the station positioner
training of programmers, operators and maintenance services
installation and commissioning of the robotic welding station

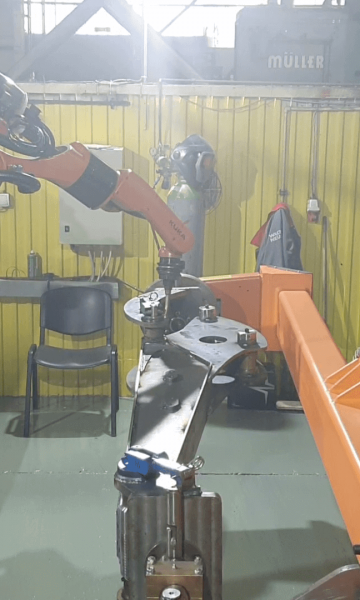

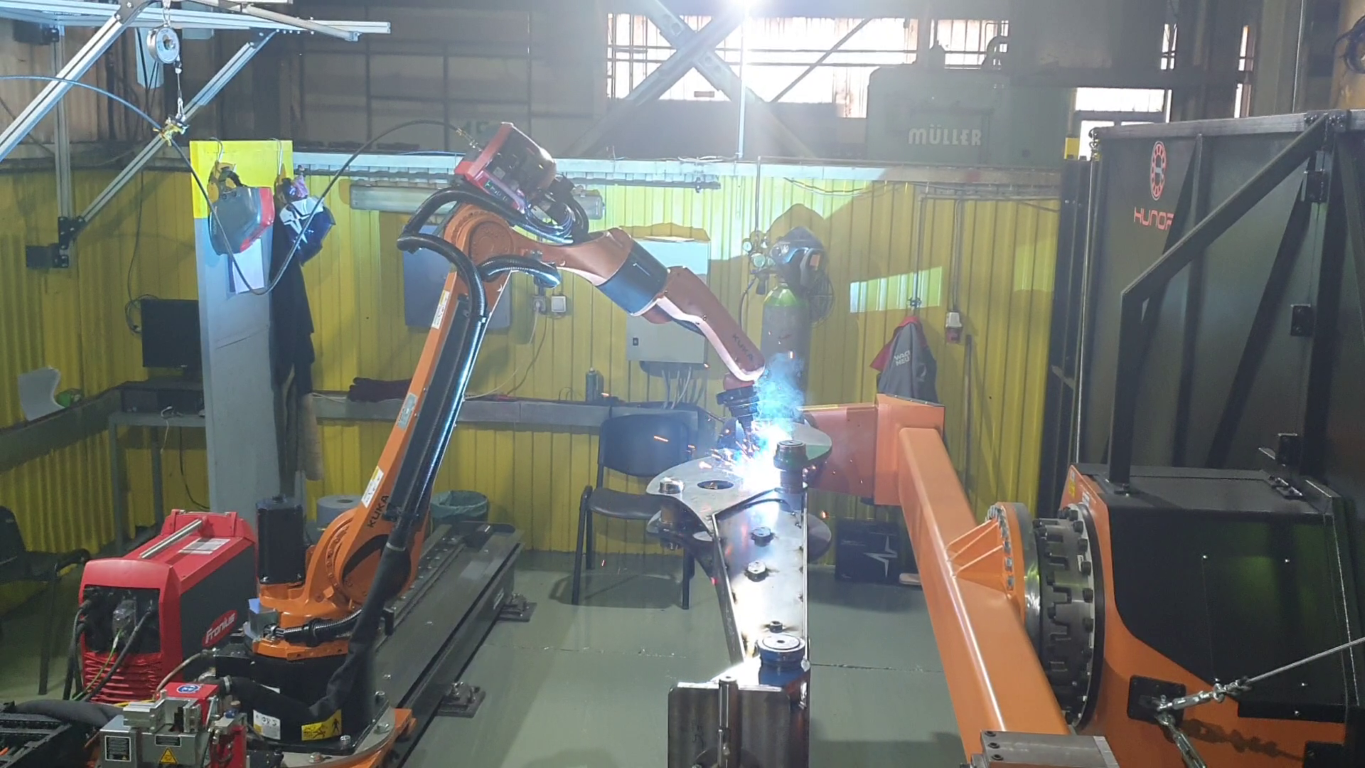

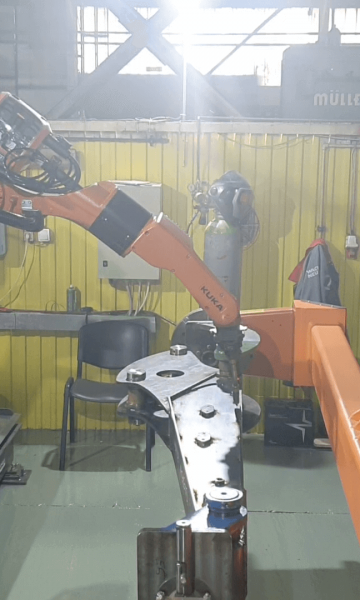

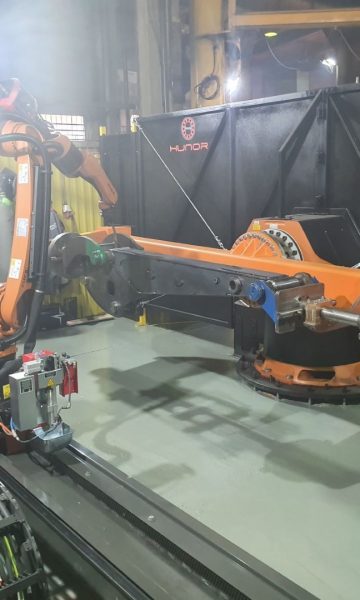

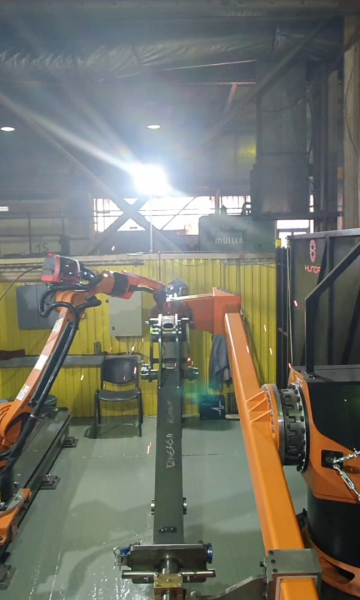

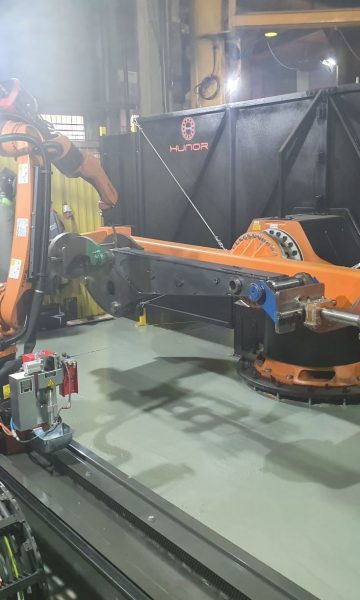

6-axis industrial KUKA robot + linear unit + custom-made 5-axis positioner synchronized with the robot (12 synchronized axes in total)

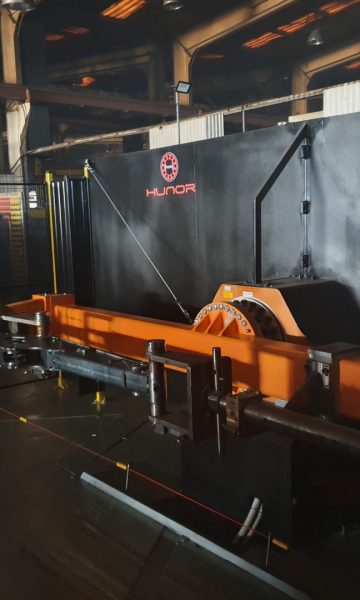

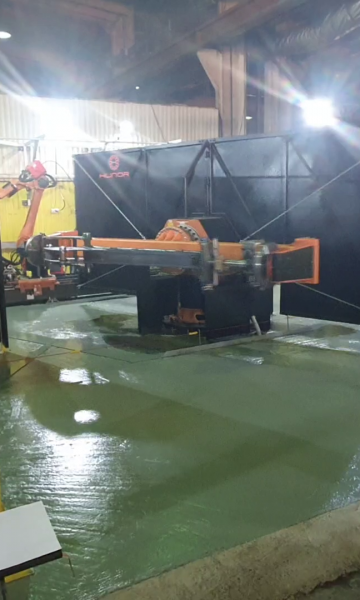

double station, on one side of the station the robot is working, and the other side is being prepared (removing the finished piece and putting on a new one)
very simple change of product type and program at the station for the operator
possibility of simultaneous welding of two different types of products (different type on each side of the station)
good planning in this way reduces the need for relatively frequent changes of types and therefore saves time significantly, so that the time saved can be used in regular production
simple and quick replacement of parts
long service interval and very long autonomy thanks to the addition of wire feed from a large tank, automatic cleaning of the burner and checking and calibration of the TCP
safety system with light curtains and safety software solutions ensures a high level of safety for carefree and safe work
